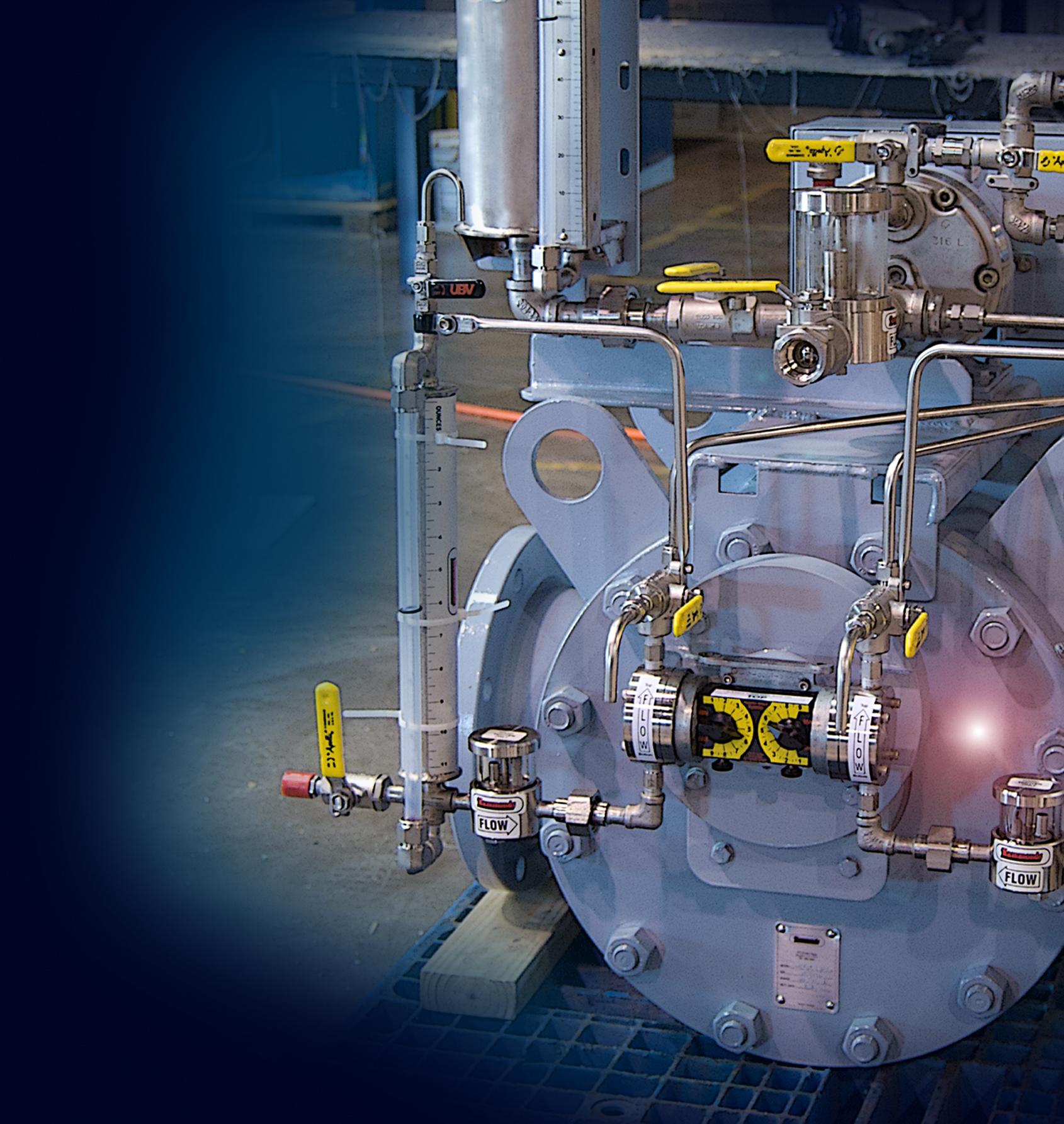

Stationary Injection Systems
Positive Displacement
Systems for varying flow rates. Positive Displacement units cover a very broad flow range (i.e. multiple truck fill racks or low ramp up and ramp down times).
| Injector Model | Min. Flow Rate | Max. Flow Rate |
|---|---|---|
| Model 150 | 7gpm | 75gpm |
| Model 600 | 20gpm | 250gpm |
| Model 800 | 75gpm | 700gpm |
| Model 1000 | 100gpm | 1100gpm |
| Model 1400 | 300gpm | 1500gpm |
| Model 1600 | 500gpm | 2000gpm |
| Model 2000 | 600gpm | 4000gpm |
| Model 2400 | 1000gpm | 8000gpm |
Turbine
Systems for consistent flow rates. Turbine units have a much narrower range of operation (i.e. single truck fill racks, or pipeline transfers).
| Injector Model | Min. Flow Rate | Max. Flow Rate |
|---|---|---|
| Model 4T | 200gpm | 750gpm |
| Model 4L | 100gpm | 400gpm |
| Model 6T | 400gpm | 1200gpm |
| Model 8T | 500gpm | 2000gpm |
| Model 10T | 700gpm | 3000gpm |
| Model 12T | 1500gpm | 8000gpm |
