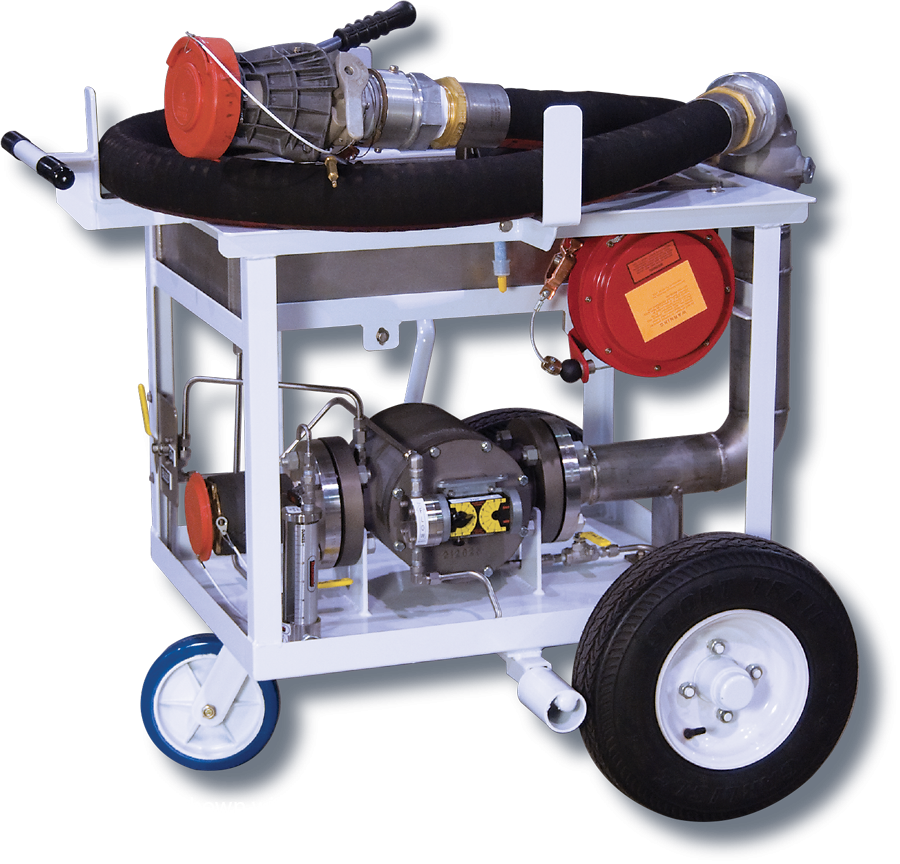

The portable HC Cart system provides you with the convenience and portability required to inject up to three additives at any point in your product handling system.  With Single Point connections, it makes for quick and easy integration to your fueling system, typically between the fueling point and the aircraft.

  • Available with Hammonds Models 150, 600 and 800 Fluid Powered Injection Systems
  • Handles ratios up to 8125 ppm
  • Can be custom configured to delivery up to three additives with a single system
  • Accurate additive dosage across a broad flow range
  • Thorough and complete blending of the additive
  • Custom product connections available for any application
SPECIFICATIONS
  • Number of additives:  1 standard, 2 or 3 optional
  • Product Inlet:  Single Point Inlet adapter
  • Product Outlet:  Single point Fueling Nozzle
  • Injection ratio:  Up to 8125 ppm, depending upon system and pumps chosen
  • Product flow range
    • Model 150 Injector:  7 – 75 gpm
    • Model 600 Injector:  20 – 250 gpm
    • Model 800 Injector:   75 – 700 gpm
  • Product Temperature Range:  -40°F to +250°F (-40°C to +121.1°C)
  • Maximum allowable product line pressure:  100 PSI (6.8 bar)
  • 10 gallon stainless steel additive tank standard
  • Tank volume level gauge
  • Sight Flow Indicator with Suction Strainer
  • Desiccant Dryer
  • Product delivery hose:
    • With Model 150 Injector:  10’ x 1-½” aviation fueling hose
    • With Model 600 Injector:  10’ x 2” aviation fueling hose
    • With Model 800 Injector:  10’ x 2-½” aviation fueling hose
    • Custom hose size and length available as an option with any system
  • Parking Brake
  • Static Ground Reel
  • 480 x 8” pneumatic wheels
  • Product viscosities:  to 10,000 ssu
  • Powder Coated finish -- Bright White – Custom colors available
CONSTRUCTION MATERIALS
  • Fluid Motor Housing:  Hard Anodized Aluminum
  • Fluid Motor Rotor:  Hard Anodized Aluminum
  • Fluid motor Shaft:  300 series stainless steel
  • Elastomers:  Application specific
  • Mechanical Seal:  Carbon on Ceramic
  • Overall Dimensions:  36” W x 46” L x 39.5” H (91.4cm W x 116.8cm L x 100.3cm H)
  • Approximate weight (varies by specific application)
    • Model HC150:  390 lbs
    • Model HC600:  425 lbs
    • Model HC800:  475 lbs

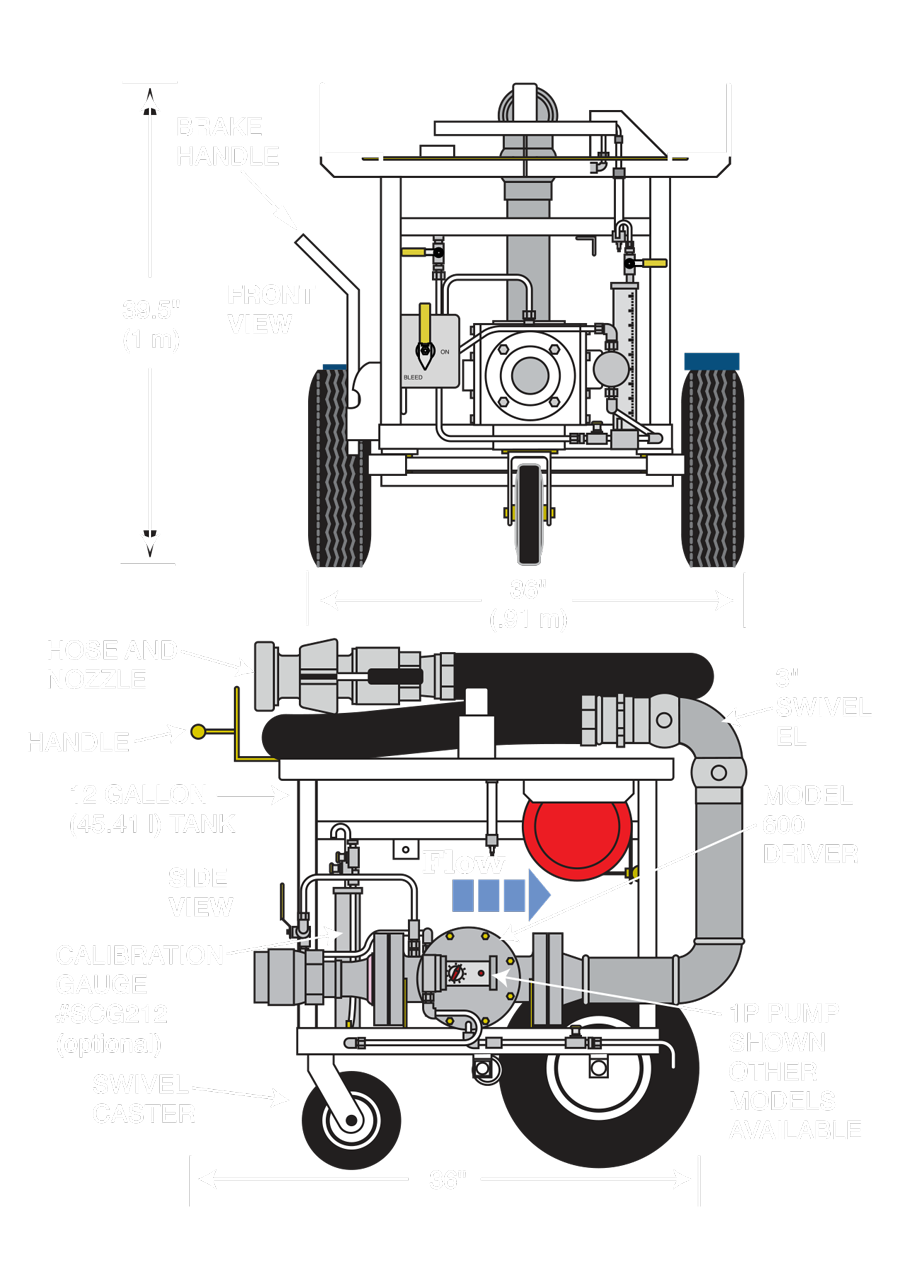

(Drawing Above Is Modifiable Per Your Installation)
