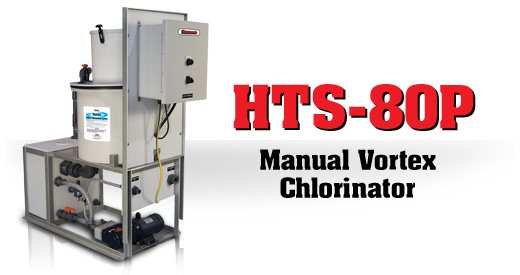

Tablet Chlorination Model: HTS-80P
The Hammonds advanced technology vortex chlorinator takes the mystery out of on-site, engineered tablet chlorination. Not to be confused with adapted swimming pool feeders, Hammonds chlorinators are designed from scratch for municipal and industrial disinfection. A high energy vortex mixing chamber with no moving parts produces calcium hypochlorite solution at less than 1/4% (0.25%) concentration precisely metered by a positive displacement pump providing disinfection for wells to 2000 GPM. Single phase 110 VAC power at 5 amps and a water source of 8 GPM is all that is required to provide consistent stable residuals in potable and wastewater treatment. Hammonds vortex tablet chlorination systems, are the state-of-the-art in water treatment systems. Contact a Hammonds water treatment specialist today.
SPECIFICATIONS
- Tablet recommendations: NSF® std. 60 listed solid calcium hypochlorite only.
- Performance: Typical 50-2000 GPM wells at dosing levels up to 2 PPM
- Chlorine delivery: 0-3.0 pounds per hour. Delivery will vary depending on size and manufacture of calcium hypochlorite tablet
- Solution metering pump:
- Type: Balanced diaphragm, positive displacement
- Performance: 0-3 GPM
- Chlorine delivery controls:
- Manual: Pump speed with variable control
- Automatic flow pacing: Automatically adjusts pump speed when supplied with 4-20mA signal from process flow meter
- Tablet capacity: 80 lbs.
- Water required: 8 GPM clear, potable at pressures of 30-150 PSI
- Power: 110 VAC @ 3 amps
- Discharge pressure: Up to 150 PSI, higher pressures available
- Inlet pressure: 30 - 150 PSI
- Frame material: Hot dip galvanized angle iron
- Leveling legs: (4) stainless steel adjustable with leveling bubble
- Dimensions: 24” W x 60” H x 49” L
- Weight: 260 lbs.
- Enclosure: UL® listed NEMA 4X
- Power supply: 110 VAC @ 5 amps, actual consumtion less than 5 amps
- Pump motor: 1/3 hp, variable speed, TEFC, 90 VDC
- Frame: 1/2” x 1/2“ hot dip galvanized steel
- Mixing reservoir: 30 gallon - polyethylene (actual used capacity approximately 6 gallons)
- Tablet feeder: PVC
- Solution tank: 25 gallon polyethylene 12” W x 20 1/2” H x 20” L)
- Piping: Sch. 80 PVC
- Inlet water supply at bulkhead: 1” Sch. 80 PVC
- Outlet 1/2” fnpt
- Circulation to mixing reservoir: 3/4” Sch. 80 PVC
- Discharge from circulation reservoir to solution tank: 2” Sch. 80 PVC
- Suction feed to pump: 1” nylon re-enforced PVC clear hose, PVC hose barbs
- Pump discharge manifold to system outlet: 3/8” nylon re-enforced PVC tubing with PVC hose barbs
- Relief valve: Sch. 80 PVC
- Flow limiting valve: PVC
- Unions/bulkhead fittings: Sch. 80 PVC
- Pump suction strainer: PVC
- Pump:
- Fluid end: Polypropylene -Valves: 316 S.S.
- Elastomers: Viton® -Diaphragm: Viton®
- Lube oil: Food grade
